Harmar Hybrid Van Lift HD

Harmar Hybrid Van Lift HD

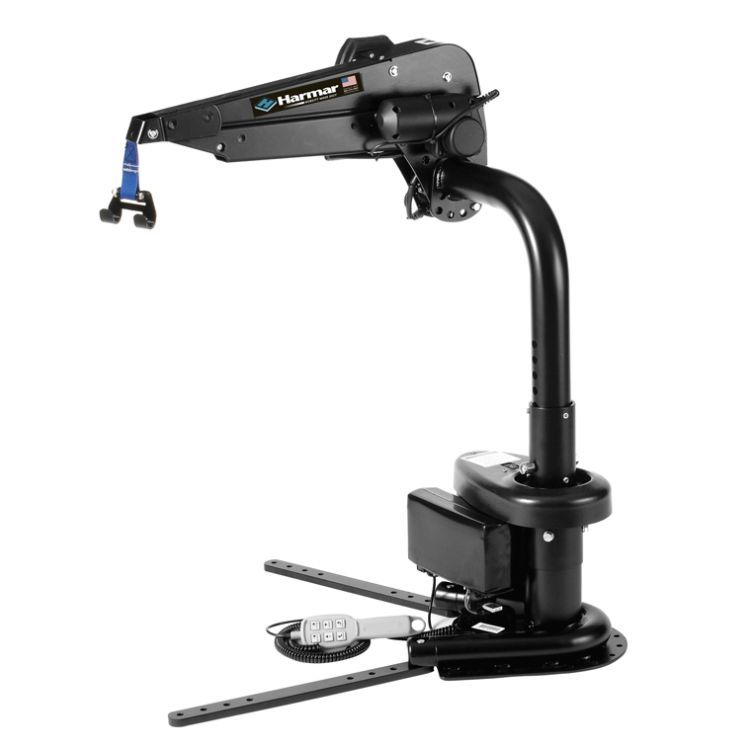

Harmar Axis III AL435 [Model # AL435]
Special Price $3,930.00 was $5,085.00

The AL435 powered boom lift will help maneuver some of the largest possible power chairs or scooters into the smallest vehicle openings.

More versatile and flexible than any other inside van and pick-up truck lift on the market today, it adapts to most mini-vans, full sized vans, SUV’s and pick-up trucks. Fits other specialty vehicles such as the Chrysler PT Cruiser. Triple axis lift provides fully powered lifting, boom extension and rotation for the easiest of, most effortless loading.

Specifications
    • Maximum Lifting Capacity
      400 lbs
    • Installed Weight
      76 lbs
    • Maximum Lifting Height
      43" at Horizontal Boom Position
    • Minimum Lifting Height
      32" at Horizontal Boom Position
    • Range of Boom Adjustment
      Powered from 21" -31.8"
    • Arm Angle Adjustment
      -31.5 to 40.5 degrees (5 deg increments)
    • Column Rotation
      180 Degree Adj. at +/- 20 Degree Increments
    • Arm Reach
      22"-33"

Features
  • 10.8 full inches of power extension to reach beyond rear bumper
  • Power Lifting, extension and rotation
  • New, simplified base fits in a smaller footprint
  • Easier to install and disassemble
  • Faster mounting with fewer holes, less drilling when necessary
  • Passenger or driver side install
  • Wireless remote optional

Attachment not available

Harmar Mobility warrants its vehicle lift and access ramp products against defects in material, mechanical and electrical components (parts), excluding labor cost, batteries and paint, for a period of three (3) years, provided that the products have been installed, maintained and operated properly. This warranty does not cover defects in vehicles on which Harmar Mobility products are installed or defects in Harmar Mobility products caused by defects in any part of the vehicle upon which the product is installed.


This warranty starts on the date of the retail purchase, provided the warranty certificate is returned to Harmar Mobility, completely and property filled out within ten (10) days of purchase. This warranty does not cover maintenance or adjustments. Harmar Mobility will not be charged for labor, consequential damage or repair expenses. Harmar Mobility will not, under any circumstances, be liable for the loss of the use of its products or the vehicles on which they are installed or loss of time. This warranty does not cover installation done by someone other than Harmar certified installations unless a battery pack is purchased.

This warranty becomes null and void if the product has been lost, damaged by accident, misused and/or neglected, or if the product has been modified in any way. Defective parts must be returned, prepaid, to Harmar Mobility for inspection prior to credit or replacement. At Harmar Mobility’s option, any part found to have been modified, over-stressed, damaged by accident, or misused is not covered by this warranty.


THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, INCLUDING ALL IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE LIMITED WARRANTY DESCRIBED HEREIN.
