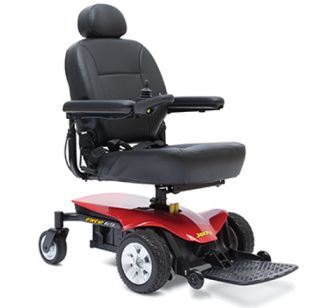

Pride Jazzy Elite ES [Model # ELITE ES]
The Pride Jazzy Elite ES power wheelchair delivers a reliable blend of performance, power and style. In-line, front-wheel drive technology gives the Elite ES excellent stability and maneuverability for solid performance indoors and out. This comfortable Jazzy wheelchair has a long 15 mile range and 300 lbs weight capacity. Call to order it now from Top Mobility and ask about the free accessories package. Features: In-line, front-wheel drive technology 40 amp, PG GC 3 controller Simple main frame design for easy serviceability Comfort high-back seat with headrest Jazzy Armor; controller guard to protect from daily wear and tear Basic Jazzy Armor shroud decals All the quality and performance that Pride's Jazzy wheelchairs are famous for. Classified as an FDA Class II Medical Device. Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
Jazzy® Elite ES
|Weight Capacity||300 lbs.|
|Length1,2||34.75"/41" (with footplate)|
|Maximum Speed3||Up to 4.0 mph|
|Ground Clearance1||1.85" at motors|
|Front Wheels||3" solid anti-tips|
|Drive Wheels||9" solid|
|Rear Wheels||6" solid casters|
|Drivetrain||Two motor, in-line, front-wheel drive|
|Braking System||Regenerative and electro-mechanical|
|High-Back Seat (max. size)||20"W x 20"D|
|High-Back Seat-to-Floor Range||21.5” – 23.5”|
|Standard Electronics||40A, PG GC3|
|Battery Size (2 required)||12 volt, U-1|
|Standard Battery Charger||3.5A, off-board|
|Per-Charge Range3,6||Up to 15 miles|
|Battery Weight5||25 lbs. each|
|HCPCS||Group 2: Standard (K0822/K0823)|
|Weight of Heaviest Piece4||69 lbs.|
|Standard Seat Weight||50.2 lbs. (comfort, high-back)|
|Standard Seat Size||16" x 16"-18"
18" x 18"-20"
20" x 18"-20"
|Warranty||5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Attachment not available
- 5-year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
