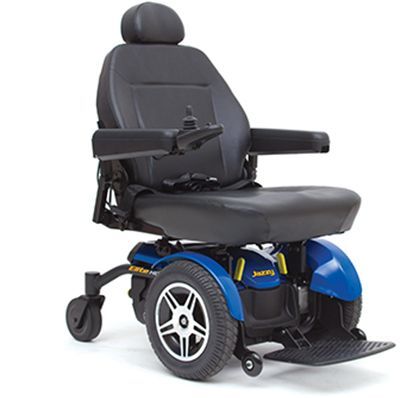

Jazzy Elite HD [Model # ELITE HD]
Special Price $3,699.00 was $5,299.00

Jazzy Elite HD Power Chair Technical Specifications
Model
Jazzy Elite HD
Weight Capacity
450 lbs.*
Turning Radius
24"
Width
24.5"
Length
42.5"
Maximum Speed*
Up to 4.2 mph
Ground Clearance
3"
Front Wheels
3" solid anti-tips
Drive Wheels
14" solid
Rear Wheels
6" Solid casters
Drivetrain
Two-motor, front-wheel drive
Braking System
Regenerative and electro-mechanical
Suspension Type
Limited
High-Back Seating
24"W x 24"D
High-Back Seat-to-Floor Range
20" - 22"
Specialty Seating
20"W x 20"D
Specialty Seat-to-Floor Range
16.25" - 18.25"
Synergy Seating
24"W x 24"D
Synergy Seat-to-Floor Range
15.75" - 17.75"
Standard Electronics
60A, Dynamic
Battery Size
12 volt, NF-22
Standard Battery Charger
5A, off-board
Per-Charge Range*
Up to 9.8 miles
Battery Weight
37 lbs. each
Base Weight
89 lbs.
Standard Seat Weight
51.5 lbs. (high-back)
Standard Seat Size
22" x 22"
Medicare Code Coverage
Group 2: Heavy Duty (K0824/K0825)
Color Options
Red or Blue
Warranty
5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
Notes
*Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18" deep seat configurations.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
*Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.

Attachment not available

  •  5-year limited warranty on frame
  • 13-month limited warranty on electronics
  • 13-month limited warranty on drive motors

Customize & Buy

Special Price $3,699.00 was $5,299.00
